Robotic Variety Pack Uncasing System
Robotic Variety Pack Uncasing System

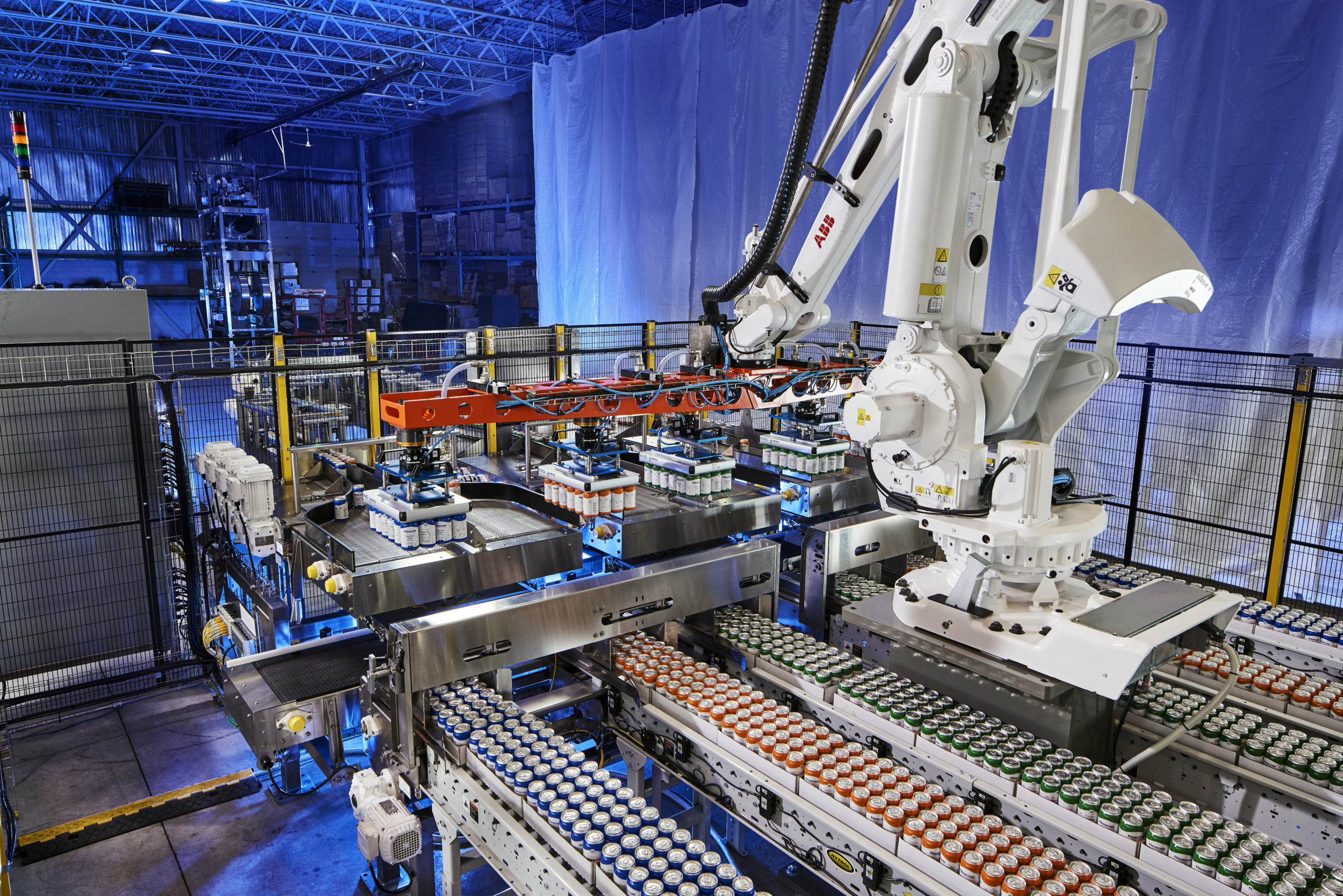

Descon’s Robotic Variety Pack Uncasing System utilizes Axis Robots to accurately and continuously create a multiple-flavoured pack of beverages.

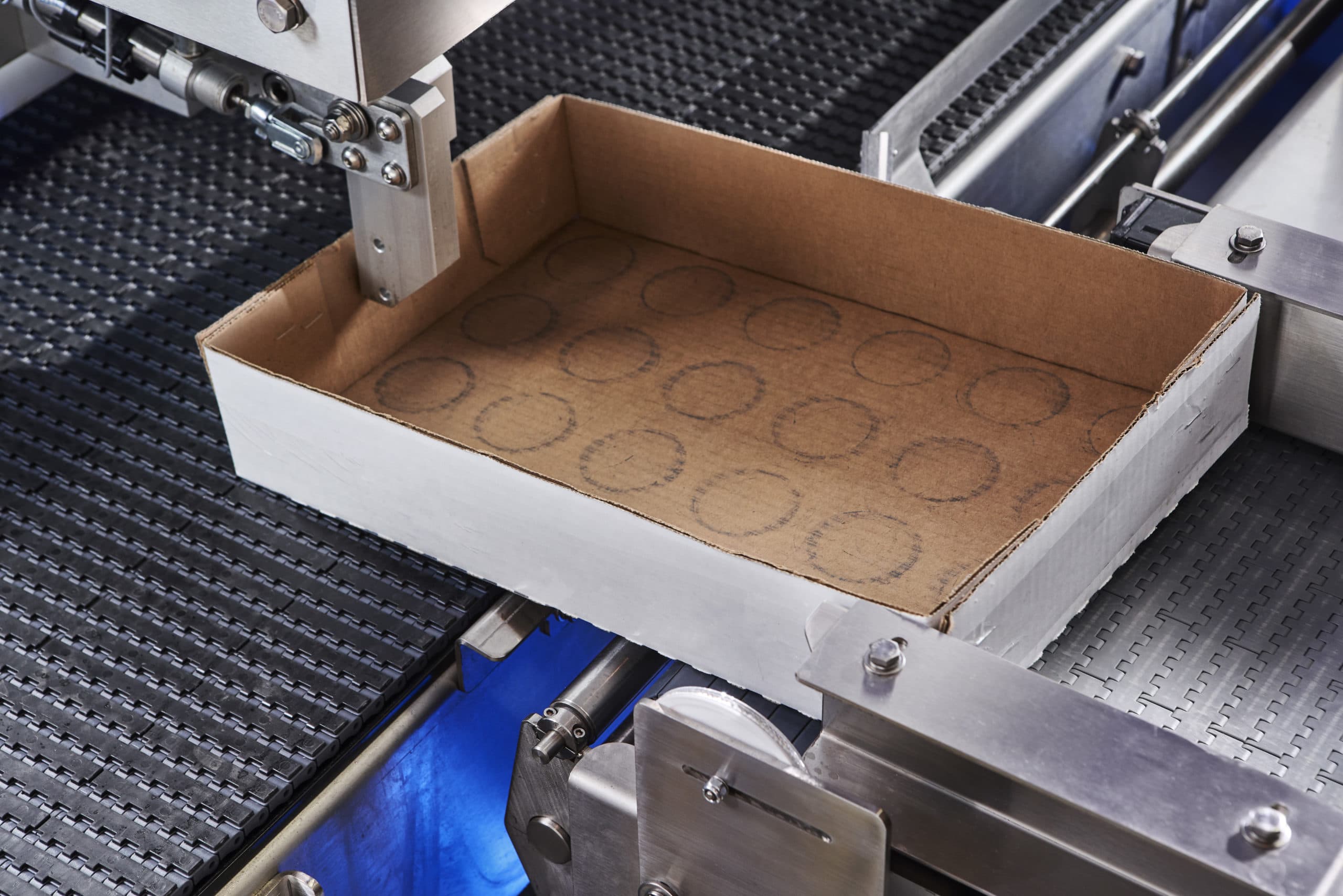

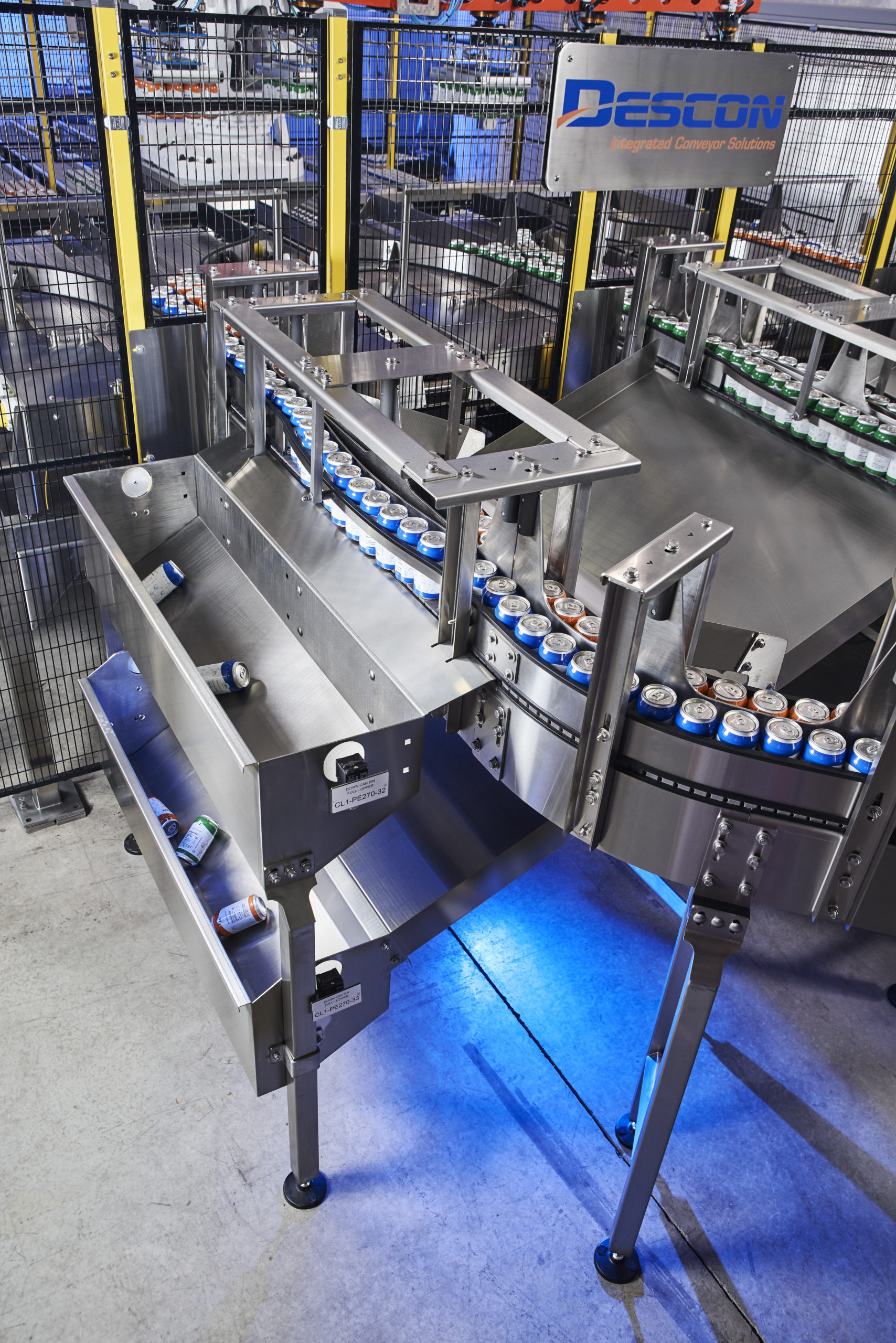

It’s designed to receive up to 6 lanes of product each of various flavours, delivers them into the uncasing station, then sequentially uncases full product from their trays. Trays are then discarded to a reject system. The result is a variety pack of beverages.
Features
- Multiple configurations for a variety of container types: cans, PET, HDPE, and glass
- Small footprint for maximum upstream accumulation and minimal floor space
- 4 Axis robot for accurate positioning
- Retracting positioning stops for case locating
- Collision Detection: ATI SR Series

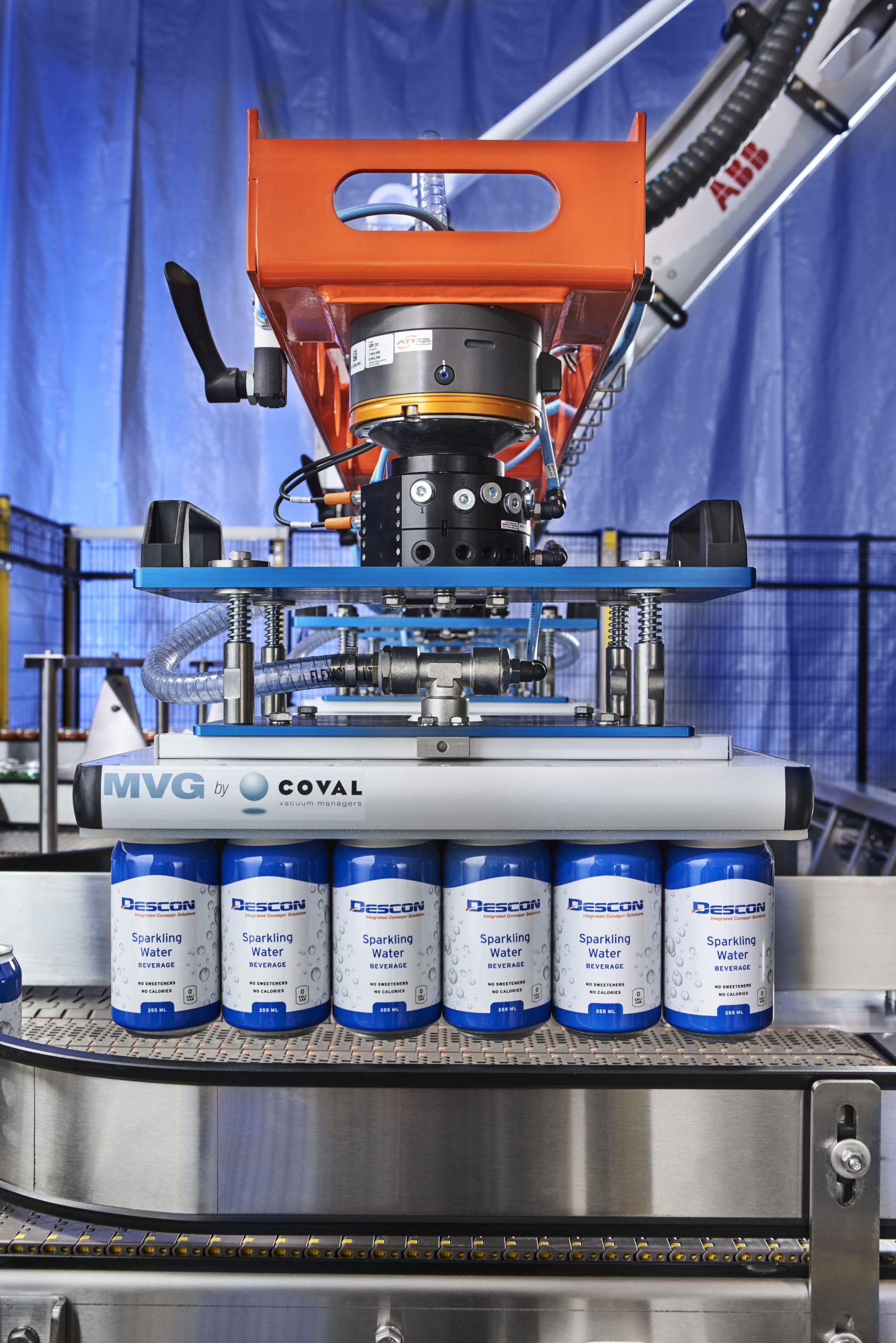

- Vacuum Generators: Coval CMS
- Air Consumption: 40cfm @ 80psi

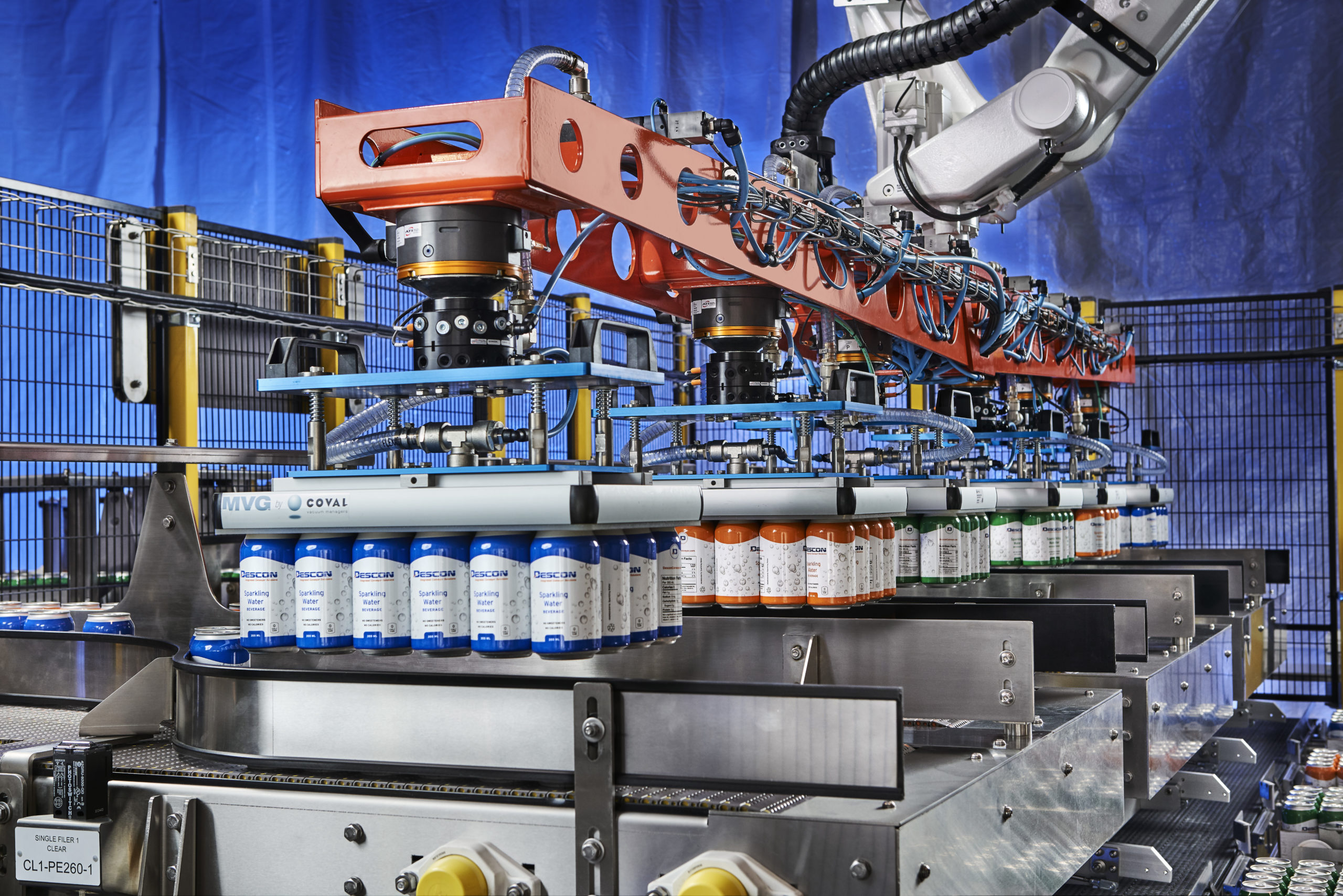

- Quick change vacuum heads drastically reduce changeover time
Rates
- Up to 6 lanes of 24pk @ 60 cases per minute, 10 cases per minute per lane
- 1440 cans per minute (24 cans per pk x 6) when running 6 lanes
- 996 cans per minute (24 cans per pk x 4) when running 4 lanes
- Cases are unloaded manually to feed robotic cell
Conveyors
Infeed Conveyor
- Zero pressure case conveyor infeed ensures consistent delivery to the robotic pickup point.

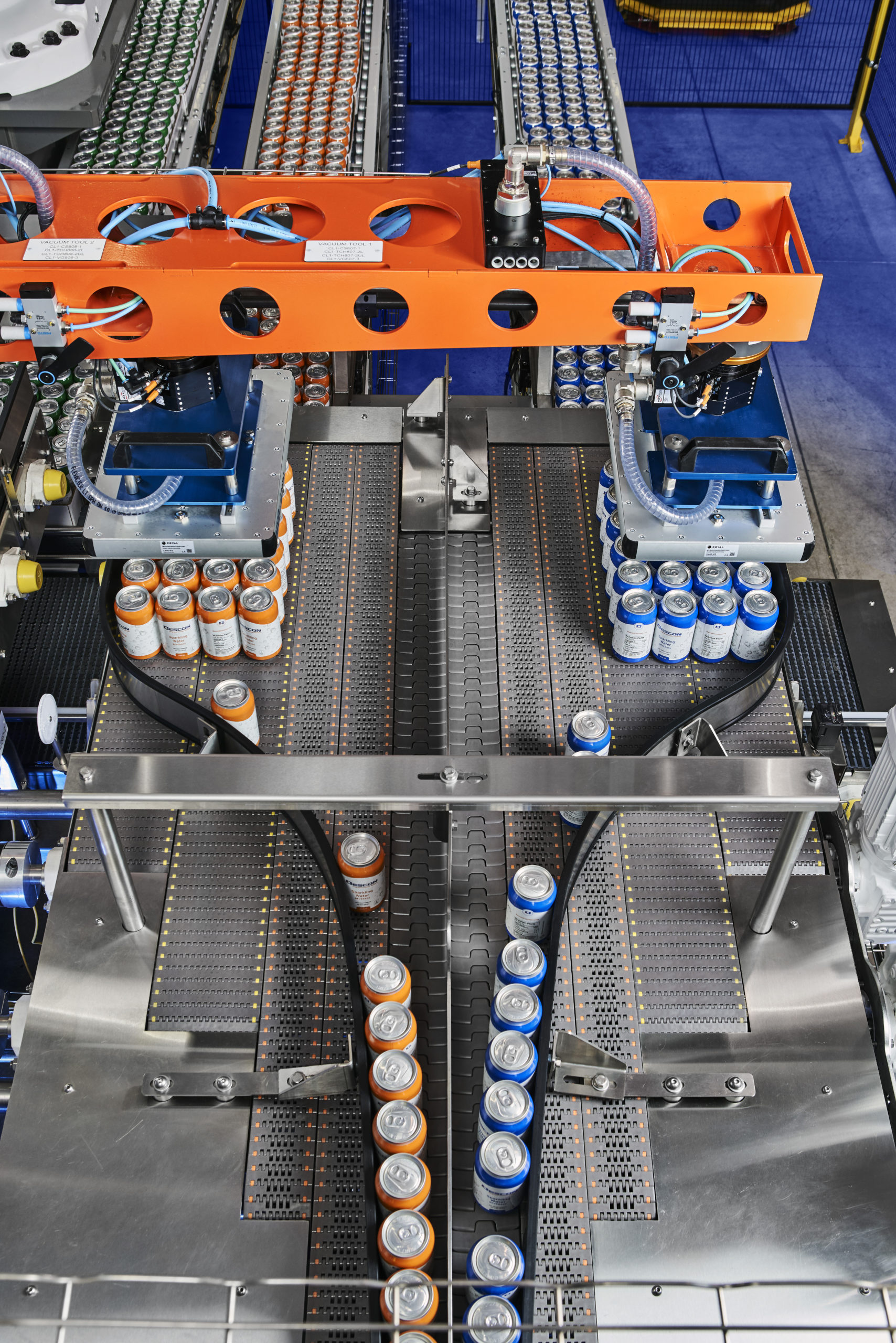

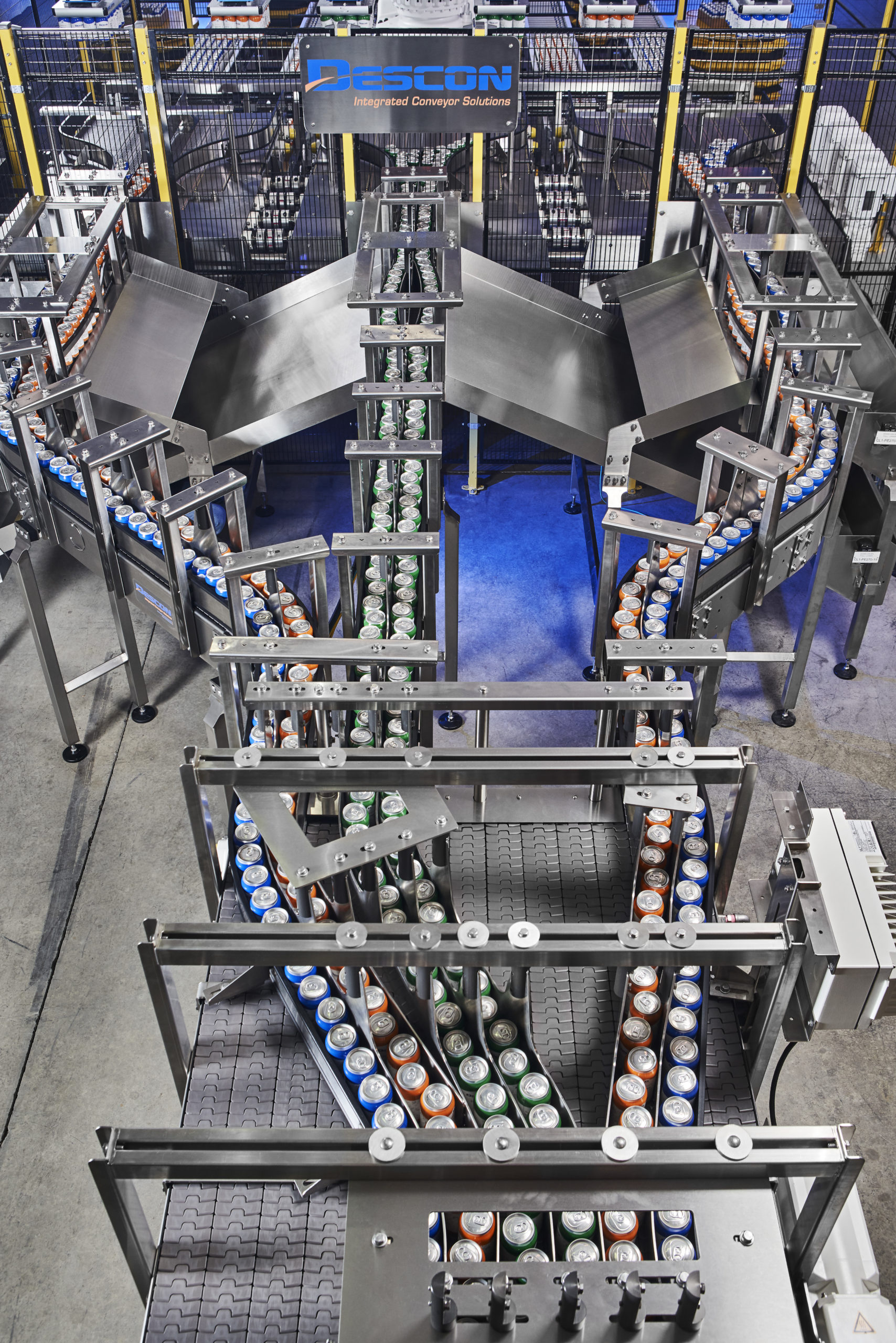

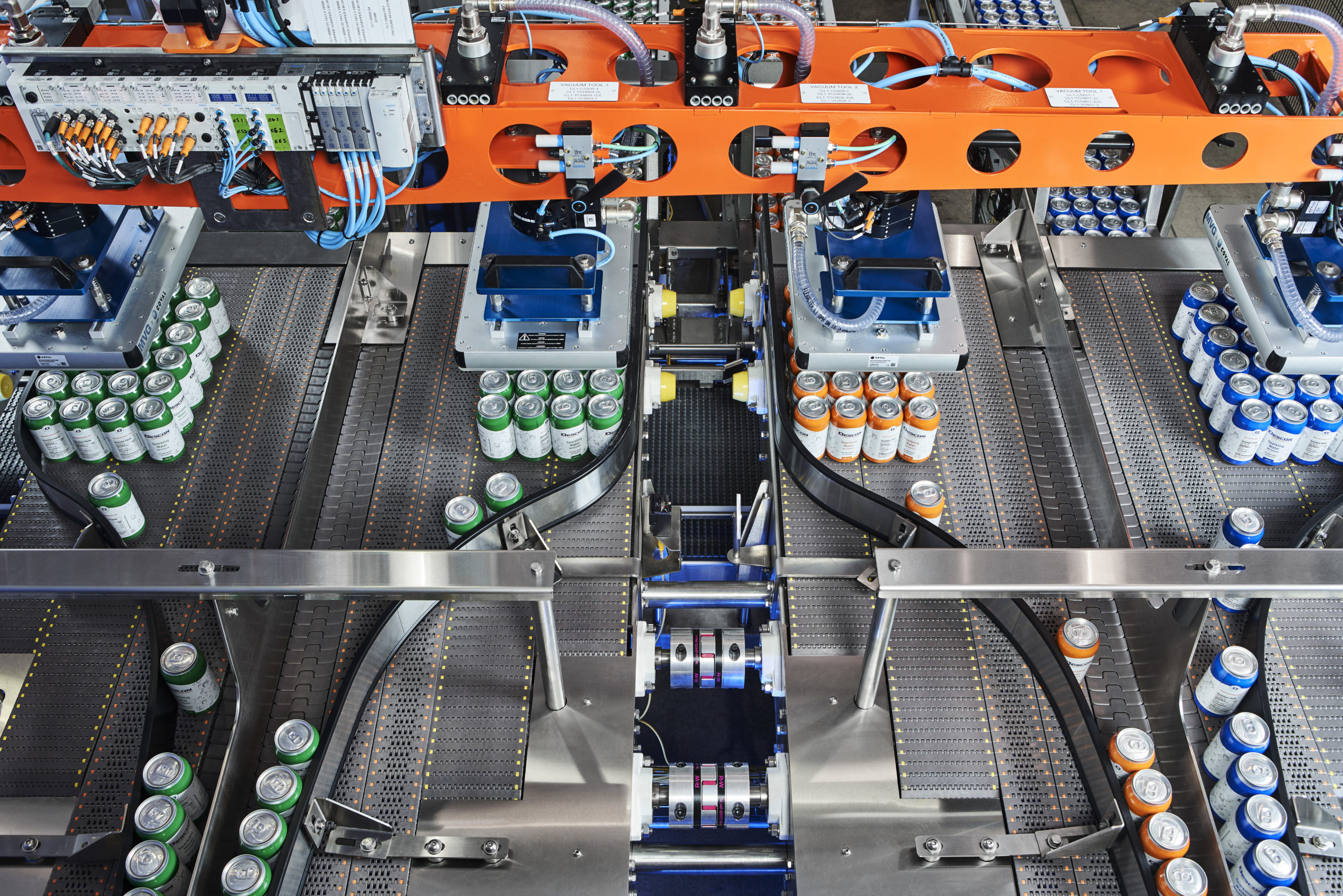

Pressureless Single Filer
- Pressureless Single Filer Technology singulates the containers and removes down containers
Controls
- Allen Bradley PLC
- Allen Bradley HMI
- PowerFlex PF525 Variable Frequency Drive
